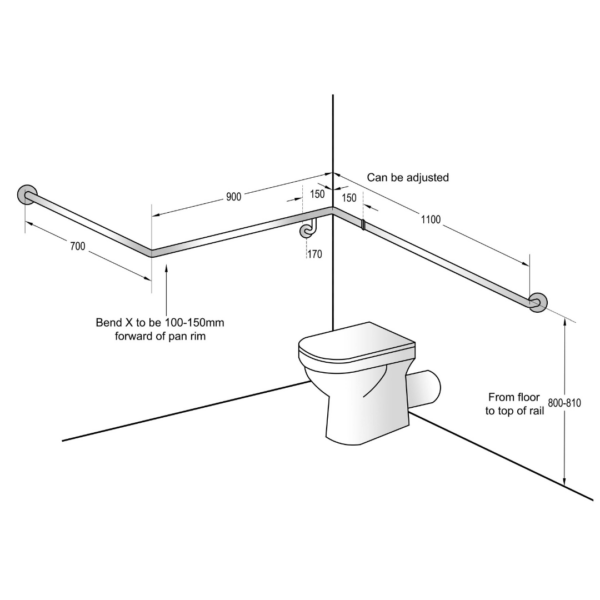

Care | Grab Rail 30° Flush Mount Wrap Around Grab Rail Modular 1100x900x700mm RH Stainless Steel
| Material | #304 Stainless Steel – 32mmØ |
| Finish |
Satin Stainless Steel |
| Mounting | Concealed Fix – 78mmØ Mount |
| Rail Standoff | 60mm |
| Mounting Point | Horizontal @ 170mm Off Wall including Standoff |
| Also Available | MLR113MOD: Modular Wrap Around Left-Hand 30° Grab Rail
MLR115MOD: Modular Wrap Around Left-Hand 90° Grab Rail MLR116MOD: Modular Wrap Around Right-Hand 90° Grab Rail MLR115MOD_DESIGNER: Modular Wrap Around Left-Hand 90° Grab Rail, Black MLR116MOD_DESIGNER: Modular Wrap Around Right-Hand 90° Grab Rail, Black |
| Notes | * This unit is accessible compliant when installed in accordance with AS1428.1. guidelines.
* It is the responsibility of the installer to ensure that the surface/substrate that the unit is installed upon and the fixings used are suitable to withstand the weight bearing loads of the unit and if required as per AS1428 / Australian building code regulations. * Compliant with the Force Requirements within AS1428.1: 2021, Section 14. |
