Description
Care | Grab Rail Click-Lock Pull Down Grab Rail with Toilet Roll Holder Satin Stainless Steel
| Material | #304 Stainless Steel |
| Tubing | 1.2mm #304 Stainless Steel – 32mmØ |
| Mounting Bracket & Brace |
4.5mm Formed #304 Stainless Steel |
| Toilet Roll Holder | 12.5mmØ Stainless Steel Bar |
| Finish | Satin Stainless Steel |

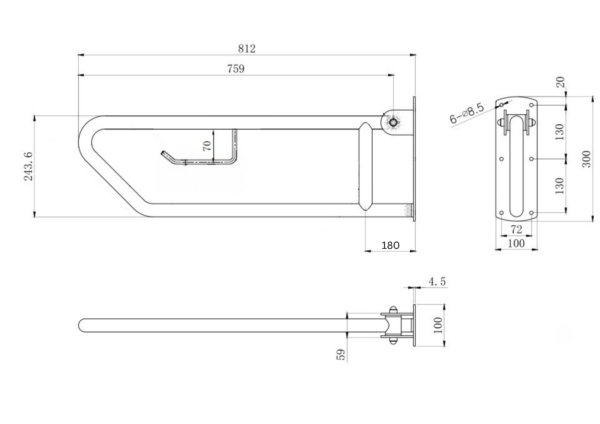

| Overall Dimensions | 812mmL x 300mmH |
| Grab Rail | 243.6mmH from outer edge to edge |
| Toilet Roll Holder | 168mmL with top of holder 50mm below underside of upper rail |
| Mounting Bracket | 100mmW x 300mmH x 30~50mmD x 4.5mmT |
| Mounting Holes | 6 off by 8.5mmØ |
| Features | Click-lock system to prevent rail sliding down Unit is Seamless Welded & Polished |
| Consumable Advice | Standard Toilet Roll, can hold up to 230 sheets per roll |
| Also Available | MLR55_TPH_PSS: Polished Stainless Steel
MLR55TPH_PEEN: Peened |
| Note | *Unit stores in upright position
*It is the responsibility of the installer to ensure that the surface/substrate that the unit is installed upon and the fixings used are suitable to withstand the weight bearing loads of the unit and if required as per AS1428 / Australian building code regulations. *The materials and construction of this grab rail meets AS1428.1 force requirements to be able to withstand a force of 1100Nm applied at any position and in any direction without deformation. |
