Description
Care | Grab Rail Drop Down Peened Grab Rail Stainless Steel
| Material | #304 Stainless Steel – 32mmØ Peened Non-Slip Finish |
| Finish | Satin Stainless Steel with a Peened Non-Slip Finish |
| Tubing | 1.2mm #304 Stainless Steel – 32mmØ |
| Mounting Bracket & Brace | 4.5mm Formed #304 Stainless Steel |

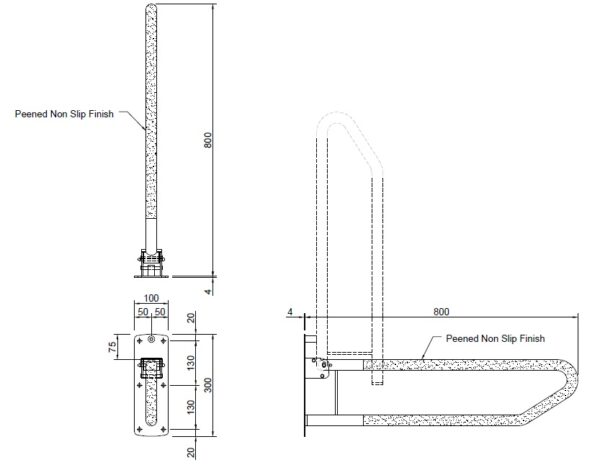

| Overall Dimensions | 800mmD x 300mmH x 100mmW |
| Mounting | Concealed Fix – 80mmØ Mount |
| Mounting Bracket | 100mmW x 300mmH x 30~50mmD x 4.5mmT |
| Mounting Holes | 6 off by 8.5mmØ |
| Features | Click-lock system to prevent rail sliding down Unit is Seamless Welded & Polished |
| Also Available | MLR55_SS: Stainless Steel |
| Notes | * It is the responsibility of the installer to ensure that the surface/substrate that the unit is installed upon and the fixings used are suitable to withstand the weight bearing loads of the unit and if required as per AS1428 / Australian building code regulations.
* Compliant with the Force Requirements within AS1428.1: 2021, Section 14. |
