Description
Care | Grab Rail Universal Pull Down Grab Rail with Nurse Call Facility Stainless Steel
| Material | #304 Stainless Steel |
| Finish |
Satin Stainless Steel |
| Tubing | 1.2mm #304 Stainless Steel – 32mmØ |
| Mounting Bracket, Brace, NC Housing: | 2.5mm Formed #304 Stainless Steel
Housing unit for Nurse Call Button swivels which allows for unit to be universal and can therefore be used as a left hand or right hand pull down grab rail |

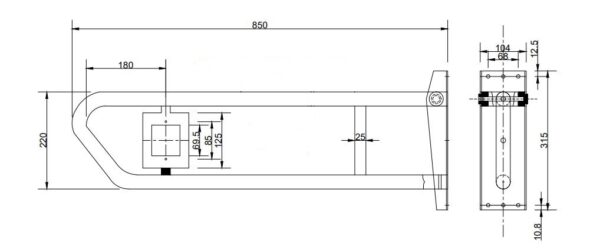

| Overall Dimensions | 850mmL x 315mmH |
| Grab Rail | 215mmH from the outer edge to edge |
| Mounting Bracket | 104mmW x 315mmH x 30~50mmD x 2.5mmT |
| Mounting Holes | 7 off by 8mmØ |
| Features | Unit is Seamless Welded & Polished |
| Notes | * Nurse Call Button not included
* Unit stores in an upright position * It is the responsibility of the installer to ensure that the surface/substrate that the unit is installed upon and the fixings used are suitable to withstand the weight bearing loads of the unit and if required as per AS1428 / Australian building code regulations. * Compliant with the Force Requirements within AS1428.1: 2021, Section 14. |
