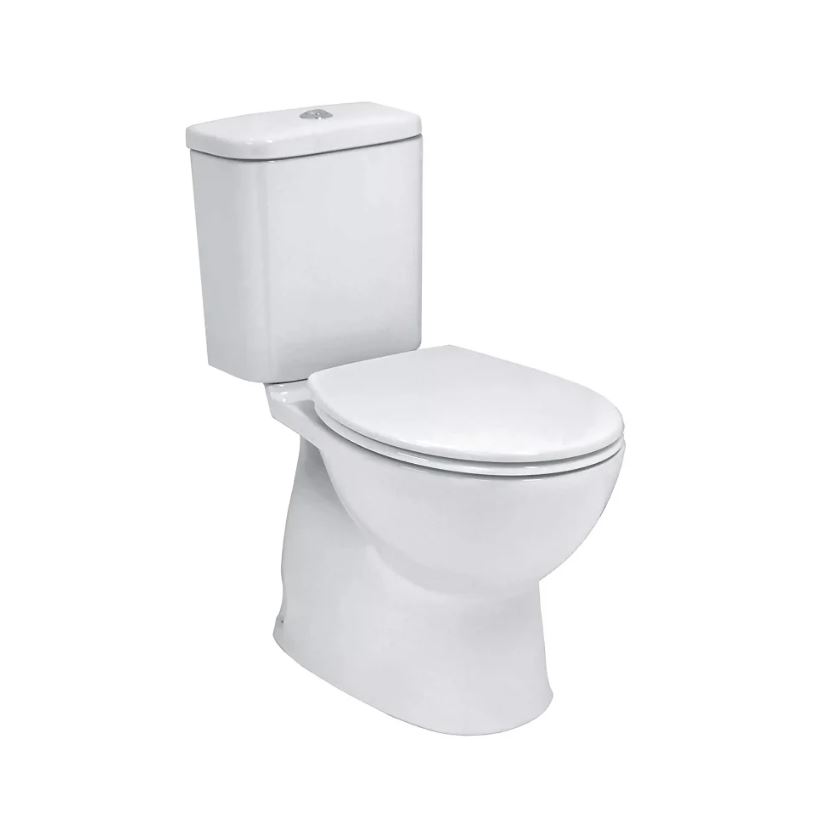

Seima | Chios Close Close Coupled Toilet Suite

Description

Seima | Chios Close Close Coupled Toilet Suite

Spec sheet DOWNLOAD PDF

Installation Guide DOWNLOAD PDF

• Clean Flush rimless pan design for an efficient, powerful flush
• Easy care height pan
• Gloss White Finish
• Quick release, soft closing seat
• S trap only
• Bottom entry plumbing or back entry plumbing (Please select the required option from the drop-down menu)
• WELS 4 star 4.5/3L water saving flush

Order codes
191788 Chios CC, bottom entry
191789 Chios CC, back entry

Product details
Optional: Bottom entry as standard, left and right inlet points.
Optional: back entry plumbing.
PAN Close coupled with rimless pan design.
TRAPS Suitable for S trap installations.
SEAT Quick release, soft closing seat.
WELS 4 star rating 4.5/3 litre water-saving flush. WELS licence 0296.

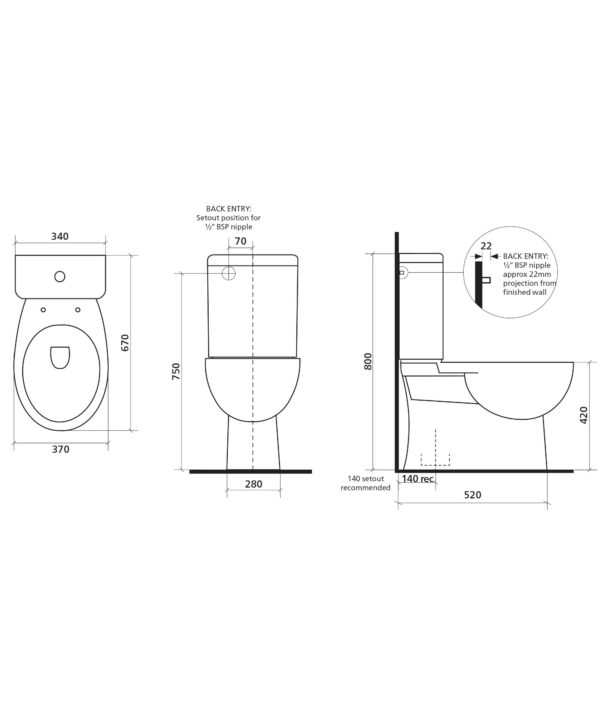

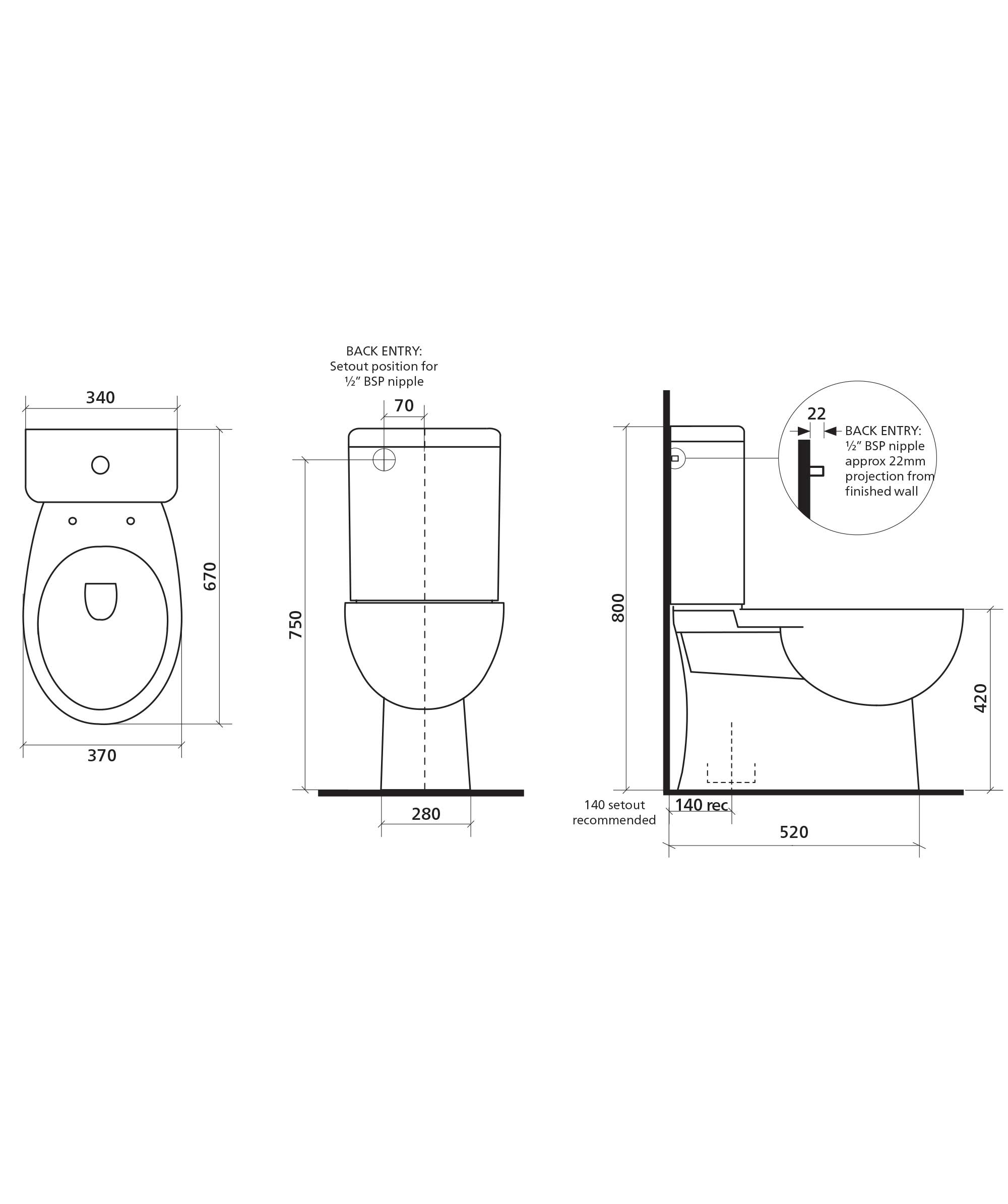

SETOUT: 140 mm recommended.
FIXING This is a close-coupled toilet suite — the cistern is fixed directly to
the pan and does not require wall fixing.
